Family house in Černošice



1/1

Zpět na výpis
Podrobné informace

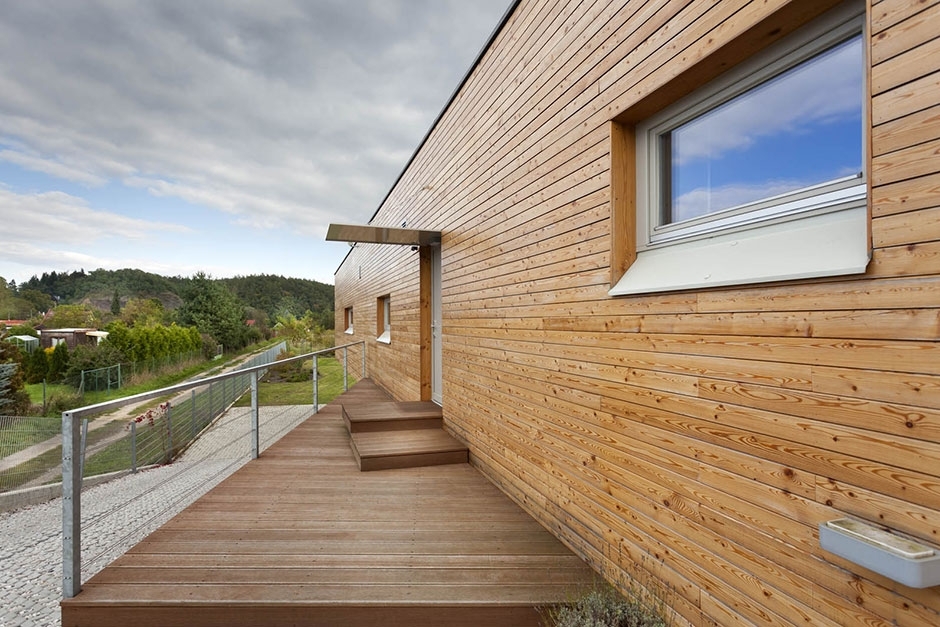

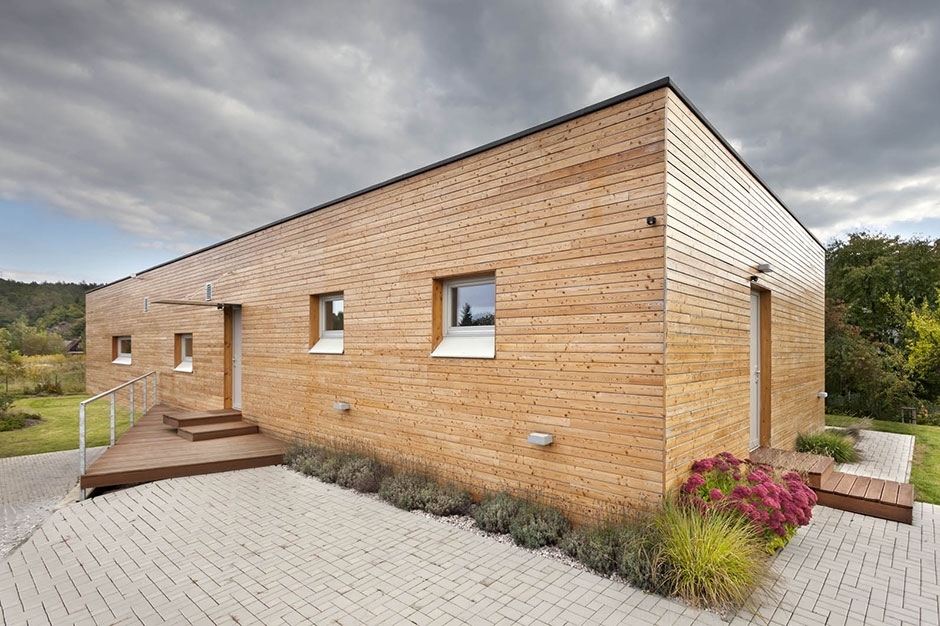

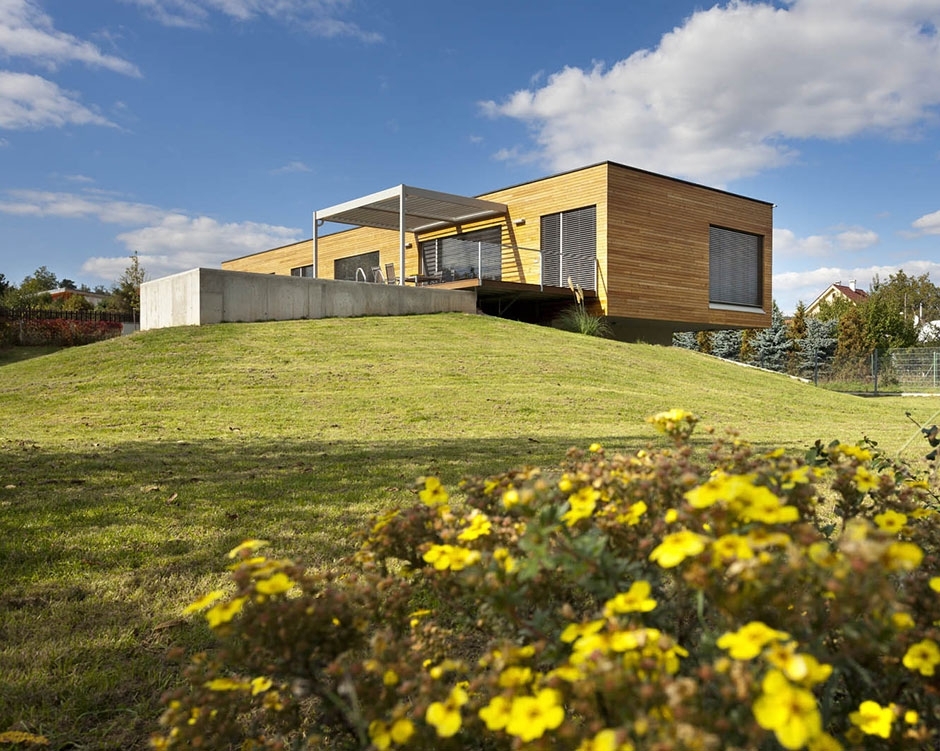

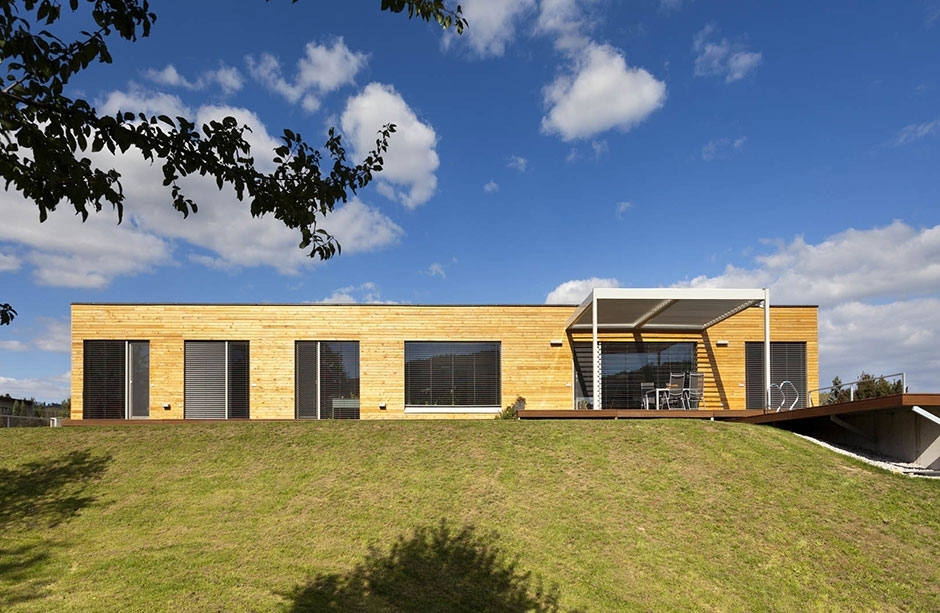

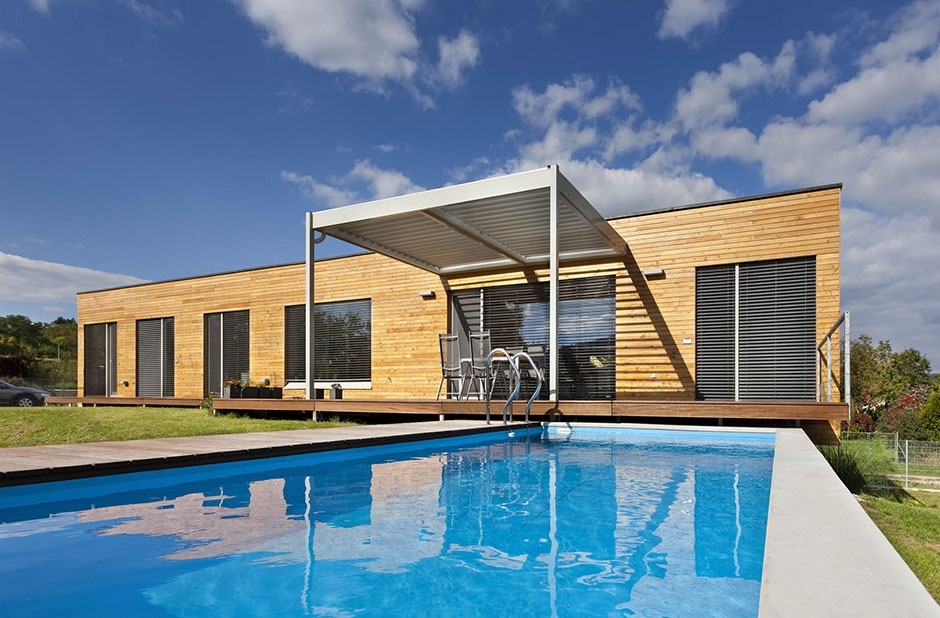

The house is located exactly on the edge of the river Berounka flood zone and therefore a section of it is cantilevered on a monolithic concrete substructure. The upper part of the house already uses our system of wooden open diffusion board structure. The house is equipped with hot-air heating with recuperation and falls into the category of energy-saving buildings. Thermal insulation of the roof is 40 cm wide, wall insulation 32 cm, triple glazing. Energy consumption for heating is very similar to the „Family House in Beroun“. The House was published on seven pages in the Pěkné bydlení magazine 8/2014.

Architect: MgA. Lukáš Rudolf, implementing project MOLO

Location: Černošice u Prahy

Investor: private person

Construction Completion: 2008

Floor Area: Residential Area 186 m2, Garage 112 m2

Building Area: 227 m2

Parameters of Heat Penetrations: walls, floor 0,12 W/m2K

ceiling  0,1 W/m2K

glass surfaces: 0,8 W/m2K

Photo: J. Hejzlar
